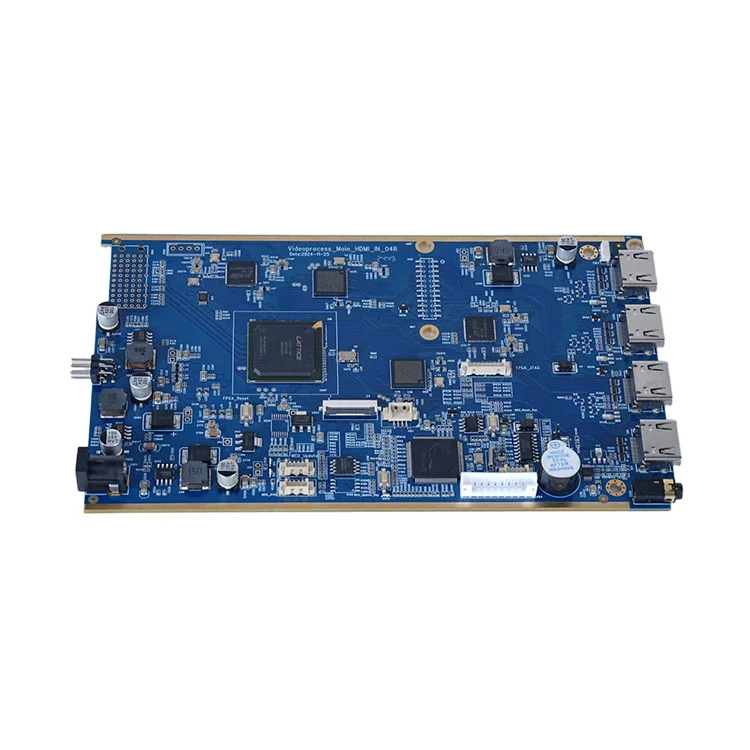

In modern electronics manufacturing, BGA PCB Assembly has become one of the most reliable and efficient packaging technologies for compact devices. With its ability to support high-pin-count components, improved thermal performance, and stable solder joints, it is widely used in communication equipment, consumer electronics, industrial control systems, and automotive electronics. As technology evolves toward miniaturization and high performance, companies like Shenzhen Fanway Technology Co., Ltd. provide advanced BGA PCB Assembly solutions that ensure optimal quality, precision, and durability.
BGA (Ball Grid Array) devices use solder balls arranged in a grid underneath the component instead of pins located on the perimeter. This structural difference brings several key advantages:
Daha yüksek bağlantı yoğunluğu
Daha iyi elektrik iletkenliği
Geliştirilmiş ısı dağılımı
Superior performance stability
Reduced risk of solder bridging
This technology is especially valuable when your product requires more robust signal integrity and tighter packaging than conventional SMD components can deliver.
The application of BGA PCB Assembly significantly boosts overall device performance. Its hidden solder balls shorten electrical paths, lowering resistance and improving signal transmission speed. Moreover, the larger contact area of solder balls enhances heat conduction, allowing high-power chips and processors to remain stable during long-term operation. For industries requiring reliable and compact electronics, this assembly method becomes indispensable.
Key Performance Benefits:
Lower impedance and improved high-frequency performance
Strong mechanical connection for vibration-resistant applications
Mükemmel termal yönetim
Increased processing capability for CPUs, GPUs, and ICs
Below is an overview of the manufacturing parameters supported by Shenzhen Fanway Technology Co., Ltd. for BGA PCB Assembly.
1. Montaj Yeteneğine Genel Bakış
| Parametre Kategorisi | Şartname |
|---|---|
| Package Types | BGA, Micro-BGA, CSP, LGA, QFN |
| Ball Pitch | 0,25 mm – 1,27 mm |
| Min. PCB Thickness | 0.4 mm |
| Max. PCB Size | 510 mm × 510 mm |
| Assembly Types | Kurşunlu / Kurşunsuz BGA |
| Muayene Yöntemi | X-ray, AOI, Functional Testing |
| Yeniden İşleme Yeteneği | BGA removal, reballing, replacement |
2. Lehimleme ve Muayene Parametreleri
Reflow Temperature Control: ±1°C accuracy
Voids Rate: < 10% (optimized for premium applications)
Coplanarity Tolerance: < 0.1 mm
Hizalama Hassasiyeti: ±20 μm
Placement Accuracy: Up to 01005 components supported alongside BGA
3. PCB Malzeme Uyumluluğu
FR4 High-Tg
Polyimide (PI)
Rogers yüksek frekanslı panolar
Hibrit çok katmanlı PCB'ler
HDI boards with blind/buried vias
These parameters ensure stable, repeatable, and high-precision assembly for even the most complex BGA projects.
Industries that require precision, durability, and high component density consistently choose BGA PCB Assembly because it ensures:
Minimum sinyal gecikmesi
Uzun vadeli termal stabilite
Güçlü mekanik bağlanma
Low failure rate under continuous operation
Mükemmel EMC performansı
Industries Widely Applying BGA PCB Assembly:
Consumer electronics (smartphones, tablets, laptops)
Endüstriyel kontrol ekipmanları
Automotive electronics and navigation systems
Medical electronics
Ağ iletişim cihazları
Aerospace and defense electronics
Shenzhen Fanway Technology Co., Ltd. offers tailored BGA solutions to meet these demanding industry conditions.
Reliability depends heavily on process control, inspection technology, and engineering expertise. We employ:
Quality Control Measures:
Otomatik Optik İnceleme (AOI)
Detects slight misalignment, solder defects, and component orientation issues.
X-ray Inspection
Essential for hidden solder joints under BGA packages.
Checks for voids, bridging, insufficient solder, and open connections.
Reflow Profiling Optimization
Ensures solder balls fully melt and form uniform connections.
Profesyonel Yeniden İşleme Teknolojisi
Our engineers can safely replace, reball, and realign BGA components without damaging the PCB.
These techniques ensure every board meets global quality standards such as IPC-A-610 and ISO9001.
The true value of BGA PCB Assembly lies in its ability to help engineers design products that are:
Smaller
Faster
Daha fazla enerji tasarrufu
More reliable under harsh conditions
Because BGA packages sit directly above solder balls, electrical pathways shorten and resistance reduces. This structure is ideal for products requiring fast data processing or compact internal layout. For example, devices using CPUs, memory chips, Bluetooth modules, or advanced networking ICs greatly benefit from BGA assembly.
To ensure optimal performance, engineers should evaluate:
Design Considerations:
Adequate pad diameter
Uygun lehim maskesi tasarımı
Via-in-pad structure if necessary
PCB ısı dağılımı
Yeniden akış eğrisi yapılandırması
Suitable material and layer count
Production Considerations:
The precision of placement equipment
X-ışını inceleme yeteneği
Engineering experience with high-density designs
Yeniden işleme ve onarım yeteneği
Shenzhen Fanway Technology Co., Ltd. provides comprehensive engineering support, helping you optimize layout, reduce assembly risk, and improve manufacturing yield.
Q1: What is BGA PCB Assembly and why is it widely used?
A: BGA PCB Assembly is a method of mounting Ball Grid Array components onto printed circuit boards using solder balls arranged underneath the package. It is widely used because it provides high-density connections, stable electrical performance, and excellent heat dissipation, which are essential for modern compact electronic devices.
Q2: How does BGA PCB Assembly improve the reliability of my product?
A: Its structure creates strong mechanical connections and improves thermal conduction. These factors reduce failure rates, enhance performance stability, and allow the PCB to operate efficiently under continuous high-load conditions.
Q3: What inspections are needed during BGA PCB Assembly?
A: X-ray inspection is mandatory to verify hidden solder joints. AOI and functional testing are also recommended to ensure alignment accuracy, proper soldering, and electrical performance.
Q4: Can Shenzhen Fanway Technology Co., Ltd. handle complex BGA PCB Assembly projects?
A: Yes. We support fine-pitch BGA, Micro-BGA, CSP, and HDI boards with advanced precision placement, reflow control, X-ray testing, and rework capabilities, making us a reliable partner for full-range BGA assembly services.
If your project requires stable, high-precision, and high-performance BGA PCB Assembly, our engineering team is ready to support your development from prototyping to mass production.
For more information or technical consultation, please contact Shenzhen Fanway Technology Co., Ltd. — your trusted partner in advanced electronic manufacturing.
